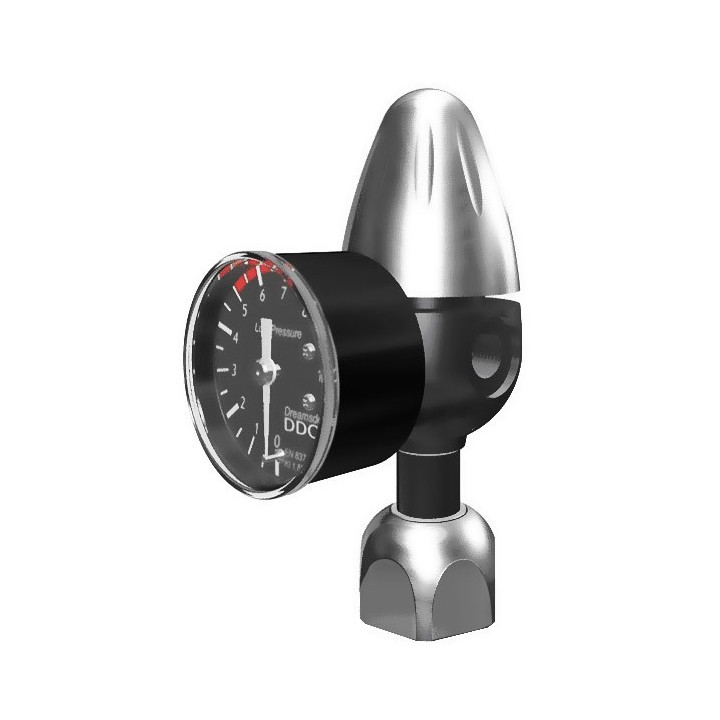

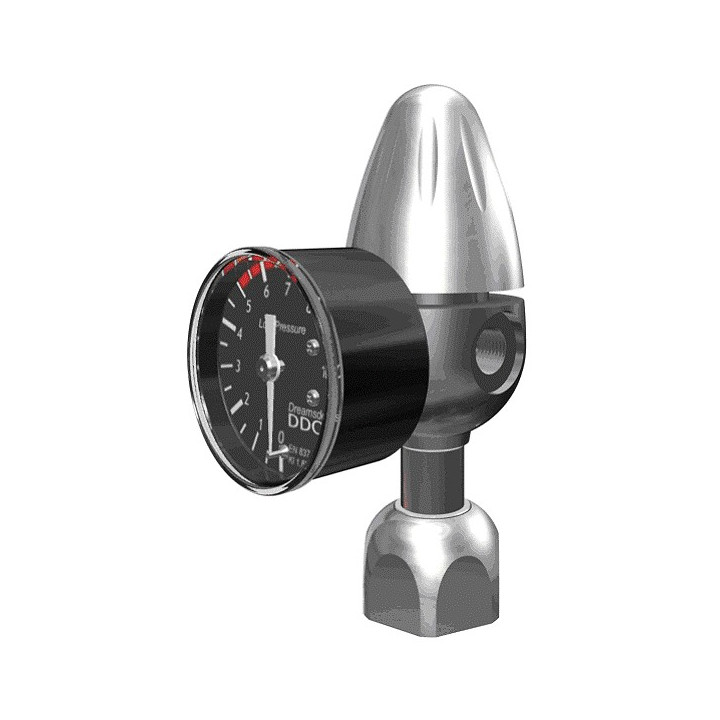

Pressure reducer with manometer for refillable cylinder

Reducer Press. CO2 Refill

Name: Reducer Press. CO2 Refill
Brand: Dreamsdesign
SKU: R000281
Price: 52.62 EUR
Availability: InStock

The Dreamsdesign E290 refillable CO2 pressure reducer is made of HR aluminum alloy with anodized treatment. It supports an input pressure of 10 to 160 bar and offers an adjustable output pressure of 0 to 6 bar.

Product code: R000281

Brand: Dreamsdesign

€52.62 excl. VAT

Quantity discount	Discount percentage	Discounted price
3 pcs	10%	€47.36 excl. VAT

Request information about this product

Technical specifications

Material: HR Aluminum Alloy

Treatments: Anodized (Anthracite)

Inlet pressure: 10 to 160 bar

Outlet pressure: 0-6 bar [regolabile]

Gauges: DN 40 low pressure [0-10bar]

Safety: Overpressure

Cylinder connection: EU extension adapter 21.8X1 / 14 '' for refillable cylinders

Output: 1/8 female

Flow rate: 15 l / min

Dimensions: 74X∅ 38 mm

Weight: 229 g

To install this pressure reducer to the cylinder you need to use a 28mm wrench to unscrew (and screw) the hexagonal ring that couples the pressure reducer to the cylinder.
