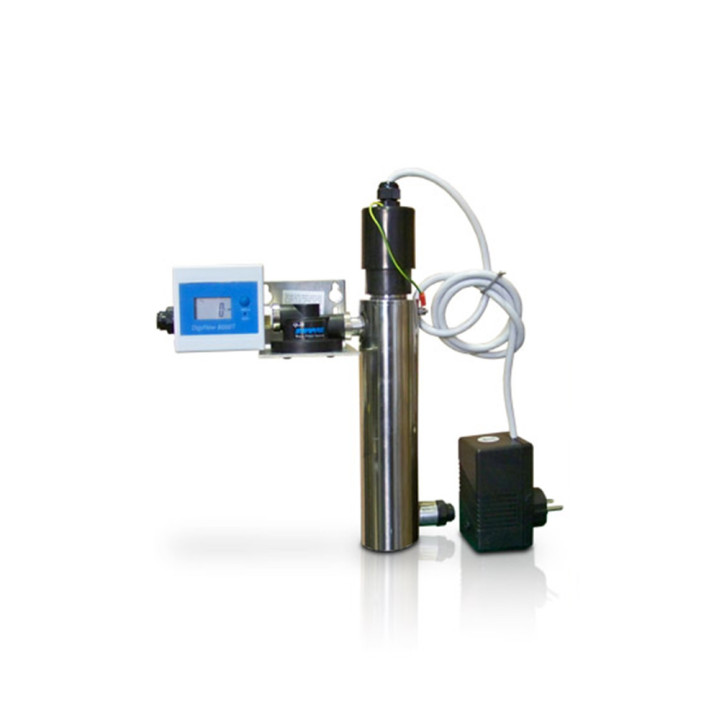

QL2B / UV system with digital liter-counter
Water treatment system prepared for Everpure cartridge
It provides high quality, delicious, crystal clear and safe water through the combination of a Pre-Coat type activated carbon filter and a water disinfection ultraviolet lamp.
The UV system eliminates up to 99.999% of the microbes present in the water.
The power supply is included in the price
UV lamp operation
The operation of the UV lamp is based on a physical principle that guarantees reliability: the emission of ultraviolet radiation at short wavelength.
The profound biostructural disorder that the ray causes on bacteria interferes with the possibility of reproduction of any type of microorganism, rendering it harmless.
Installation and use
The quick cartridge is easy to install and replace without the use of special tools.
Activation: it is advisable to let the water flow through the filter at maximum pressure and with maximum flow rate, for at least 2 minutes to allow the air in the cartridge to be purged.
I change cartridges when the capacity has arrived, or when the flow arrives too slow, every 6 months but at least annually.
Data sheet
Filter autonomy: changes according to the Everpure cartridge installed
Cartridge flow rate: 1.9 l / min.
UV lamp flow rate: 5 l / min.
Electric consumption: 12 WH
Inlet water temperature: must not exceed 38 ° C
Pressure: the inlet pressure must not exceed 10 bar.
Pipe connection: (see variants)
Dimensions (cm): 48 (L) x 25 (W) x 11 (H) (the dimensions take into account the vertical space required to replace the cartridge)
-
ReferenceR000586
-
EAN137429528790720
