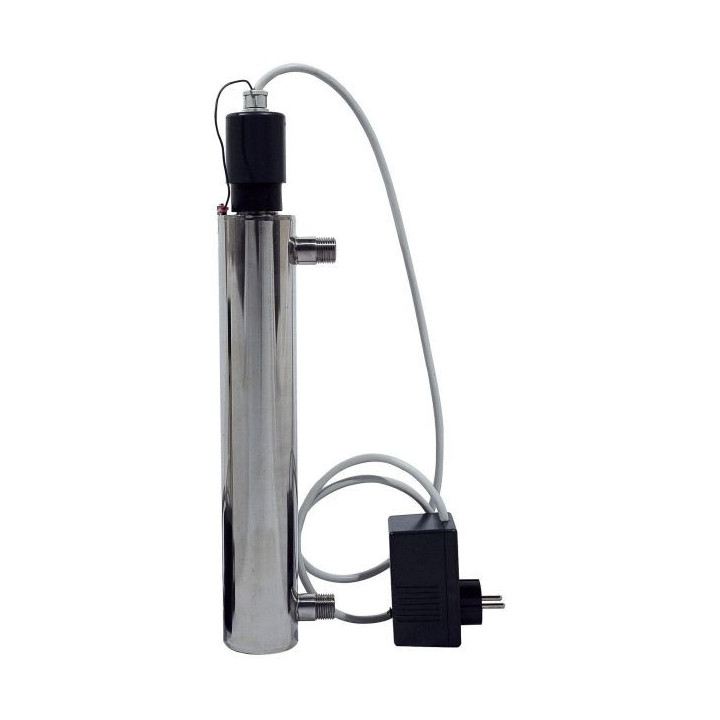

Complete UV system - 16W - 10 l / m - MM 1/2

Product

UV lamp for professional use

It is used to destroy any bacteria in the water.

It is also advisable to install a filter upstream of the UV sterilizer, in this way impurities of any nature and consistency are retained.This is essential if a high degree of sterilization is to be obtained, in fact the lack of filtration and removal of suspended particles in the water, results in a decrease in the efficiency of the sterilizer.

The power supply is included in the price

Operation

The operation of the UV lamp is based on a physical principle that guarantees reliability: the emission of ultraviolet radiation at short wavelength.

The profound biostructural disorder that the ray causes on bacteria interferes with the possibility of reproduction of any type of microorganism, rendering it harmless.

Irradiation:> 30,000 μWs / cm²

Construction material: AISI 304

Power consumption: 16 W

Number of lamps: 1

Number of pins: 4

Maximum flow rate: 10 liters / min

Center distance IN-OUT (cm): 28

Minimum pressure: 0.5 bar

Maximum pressure: 9 bar

Green LED for operation

Power cable length: 1.2 meters

Temperature: the incoming water must not exceed 38 ° C

Pressure: the inlet pressure must not exceed 10 bar.

Dimensions (cm): 43 length x 6 diameter Ø

Hydraulic fittings for aConnection to pipes: male thread 1/2 inlet (top right), female threaded 1/2 outlet (bottom right)
